Cable support specified by load, span and environment

Cope Cable Tray Engineering Starts With the Route

Translate cable fill, support spacing, grounding, finish and installation constraints into a traceable tray schedule for industrial power and control pathways.

Load / SpanNEMA VE 1 contextBonding continuity
Compare SpecificationsTalk to an Engineer

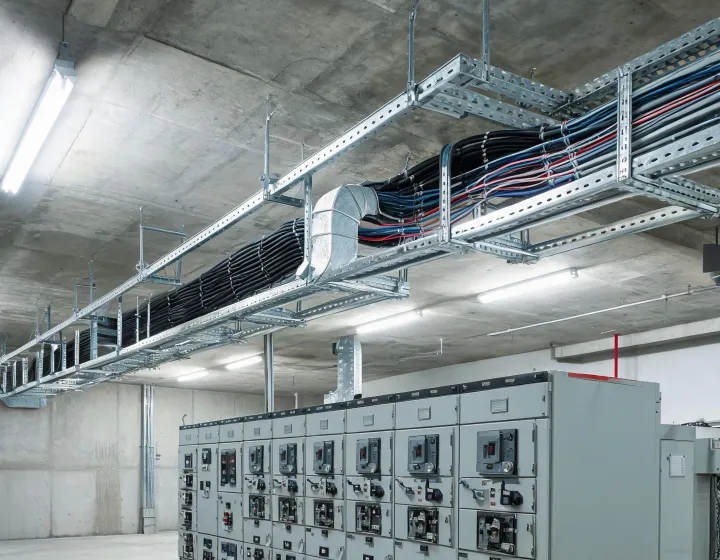

Galvanized ladder cable tray routed above industrial switchgear
Standards contextNEMA and project-code review
Mechanical ratingsLoad class, span and deflection
Submittal recordsSchedules, fittings and drawings
Route traceabilitySeries and finish references

Basis of design

Parameters that govern a cable tray schedule

Mechanical selection

Tray constructionLadder, ventilated trough or solid-bottom according to support and cable needs
Support spanVerified with allowable working load and project support locations
Material / finishAluminum, galvanized steel or stainless options assessed for environment

Electrical coordination

Cable fillCalculated by cable type, conductor size, segregation and applicable code
Bonding pathSplices and bonding components documented for continuity requirements
Route interfacesFittings, elevation changes, fire stops and enclosure entries coordinated

Engineering checkpoints

Details carried from takeoff to field installation

Each checkpoint produces a reviewable record rather than a general product claim.

01

Route takeoff

Straights, radii, tees, crosses, reducers and elevation fittings are reconciled with drawing geometry.

02

Support review

Span and concentrated loads near transitions are checked before support quantities are released.

03

Environmental fit

Finish selection considers indoor moisture, washdown, coastal exposure and chemical contact.

04

Installation record

Splice hardware, covers, bonding and accessories remain associated with the scheduled tray family.

Put the tray schedule under technical review

Send route drawings, cable list, support spacing and environmental notes. The review will identify assumptions that still need confirmation.

Request a Schedule ReviewOpen Engineering Resources
